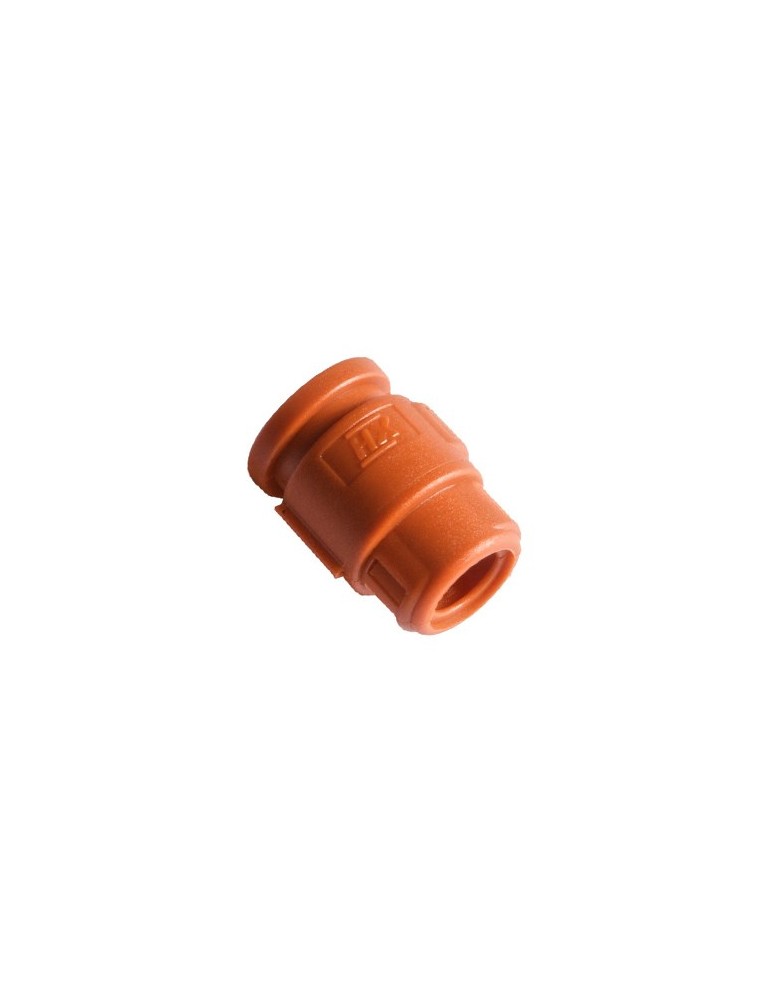

Harnessflex, CIH08-AS4 Interface

High temperature external hinged connector interfaces for AMP Superseal

Single junction straight interfaces providing high integrity, high temperature connection protection between AS – AMP Superseal connectors and Harnessflex conduit systems. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing, sufficient to avoid the problems associated with one-piece interfaces of overflexing due to movement or vibration. Full TempGuard system protection is achieved using these fittings with HTC conduit.

Temperature Range

• Minimum-40ºC
• Permanent Max 160ºC
• Long term max (30,000 hrs) 185ºC
• Short term max (3,000 hrs) 200ºC

Features

• One-piece external design for unrestricted bore and quick assembly with no tools.
• High pull-off strength – conduit corrugations sit tightly into joiner junctions.
• Conduit size labels – each junction indicates nominal conduit size to aid installation
• High Temperature Polyamide (Nylon) – Low Smoke & Halogen Free
• IP40 rated
• High UV resistance

Conformity

• CE Mark to the low voltage directive
• RoHS Compliant to 2011/65/EU
• Conforms with end of life vehicle directive (ELV) EU200/53/EC
• UL94 V2 / UL94 RTI 150 (Elec)
