Harnessflex,AB20-M20 20mm M20 Straight Conduit Fitting, Array, AB20-M20

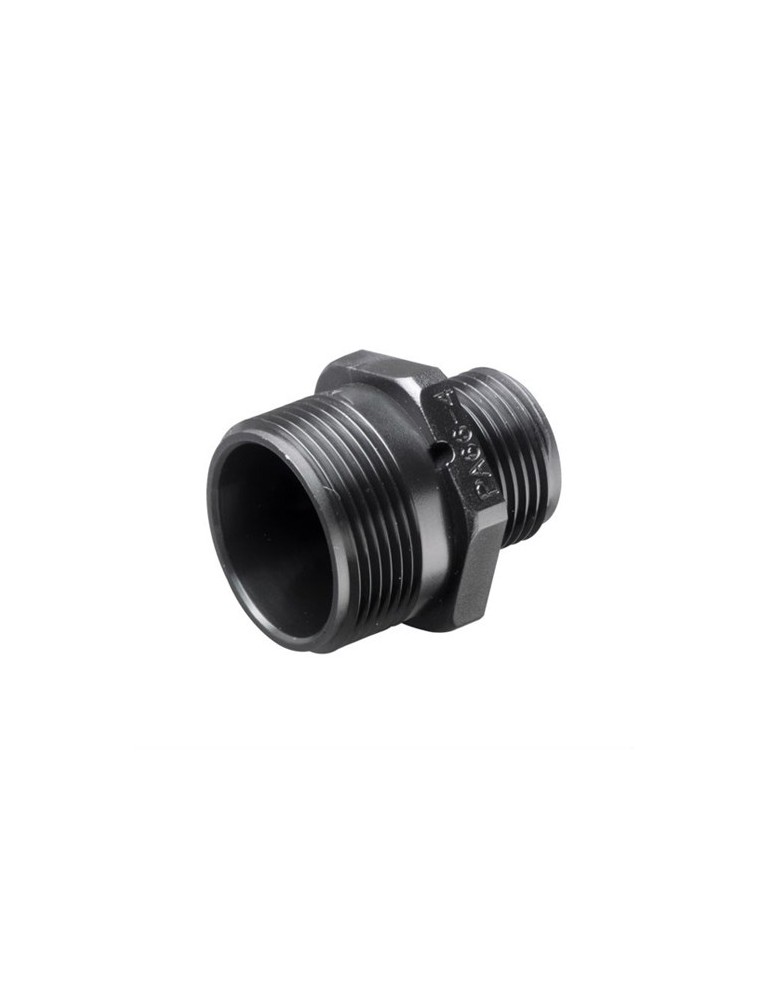

Harnessflex, AB20-M20 20mm M20 Straight Conduit Fitting

Brand: Harnessflex SKU: AB20-M20
Sealed straight fitting

Straight compression type fittings incorporating fixed or swivel male threads to provide connection to knockouts and threaded entries. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

Min Temp: -40ºC
Max Temp: 150ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

Sealed straight fitting

Straight compression type fittings incorporating fixed or swivel male threads to provide connection to knockouts and threaded entries. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

Features
  • IP67 – IP68 (2 bar for 30 minutes) SRN sealing bush protects against ingress of water and dust.
  • Cap-nut retention ring ensures integrity of assembly under extreme vibration
  • Available with metric, PG fixed male, NPT & PF threads.
  • Includes flat seal washer providing a seal between panel / bulkhead and fitting.
  • Polyamide (Nylon) 66
  • Temperature Range: -40ºC to 150ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • ADR approved (NC conduits ONLY)
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
AB20-M20

Data sheet

Minimum Temperature
-40ºC
Maximum Temperature
150ºC
