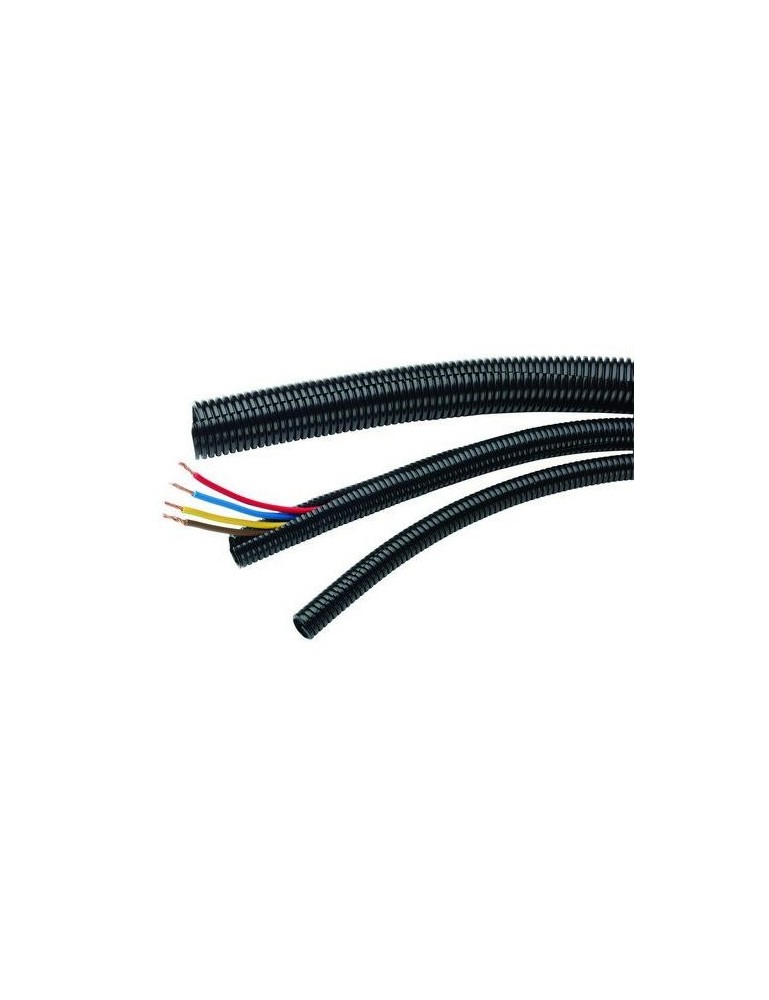

Harnessflex, CTPA32-S 32mm CTPA Split Flexible Conduit – 50m

CTPA Lightweight Extra flexible conduit, Modified Polyamide 6

CTPA general purpose, lightweight loom conduit suitable for automotive harness applications. It can withstand extremes of temperatures and resists automotive oils and solvents. It is extremely tough and has a high impact strength and fatigue life. CTPA conduits provide protection against mechanical shock and ingress of water whilst maintaining their form through tight bend radii.

Properties

• High flexibility & fatigue life
• Very high abrasion, impact and shock resistance
• Temperature range: -40ºC to 120ºC
• Temperature range short-term: 150°C
• UV Resistance – Very High (Black), Medium (Grey, Orange and Red)
• IP40 – IP67 rated (Depending on fitting)
• Available colours:
• Black (BL), Red (RAL3031) & Orange (RAL2003)
• Self extinguishing, low smoke toxicity & halogen free

Conformity

• CE Mark to the low voltage directive
• RoHS Compliant to 2011/65/EU
• Conforms with end of life vehicle directive (ELV)EU200/53/EC
• UL94 HB
