Harnessflex,16-90-DTP04 Interface, , 16-90-DTP04

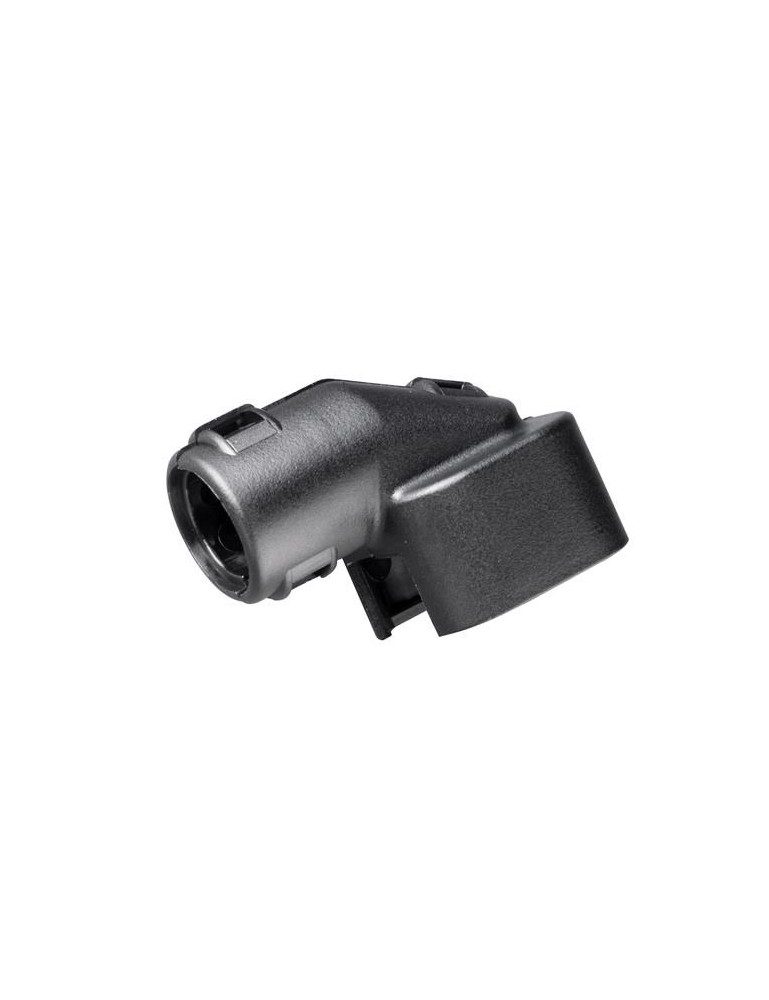

Harnessflex, 16-90-DTP04 Interface

Brand: Harnessflex SKU: 16-90-DTP04
Deutsch External Hinged Connector Interface

Single compact 90° elbow interfaces providing a dual orientation high integrity connection between the Deutsch DTP04 and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. The 16-90-DTP04 adaptor will snap into the outlet of a 16mm hinged fitting including types ‘Y’ (YPS), ‘T’ (TPS), elbows (EPS) and joiners (JPS).

Min Temp: -40ºC
Max Temp: 120ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

Deutsch External Hinged Connector Interface

Single compact 90° elbow interfaces providing a dual orientation high integrity connection between the Deutsch DTP04 and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. The 16-90-DTP04 adaptor will snap into the outlet of a 16mm hinged fitting including types ‘Y’ (YPS), ‘T’ (TPS), elbows (EPS) and joiners (JPS).

Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
16-90-DTP04

Data sheet

Connector
DTP06-4S-E004
Minimum Temperature
-40ºC
Maximum Temperature
120ºC
