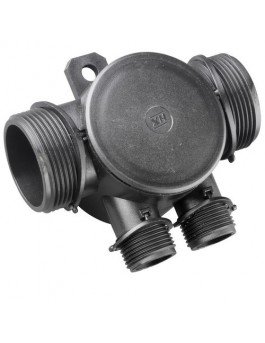

Harnessflex, TPM2512 Manifold

Multi-way fitting

Asymmetrical 4 junction compression fitting. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

Features

• IP67 – IP68 (2 bar for 30 minutes) – sealing bush protects against ingress of water and dust.
• Cap-nut retention ring ensures integrity of assembly under extreme vibration
• Smooth contoured internal form protects cables from damage during installation.
• Integral mounting bracket – provides secure external fixing point.
• Removable IP67 inspection lid
• Polyamide (Nylon) 66
• Temperature Range: -40ºC to 150ºC
• Very high UV resistance
• Self extinguishing, low smoke toxicity & halogen free

Conformity

• ADR approved (NC conduits ONLY)
• CE Mark to the low voltage directive
• RoHS Compliant to 2011/65/EU
• Conforms with end of life vehicle directive (ELV)
• EU200/53/EC
