Harnessflex,16-GT284 Interface, , 16-GT284

Harnessflex, 16-GT284 Interface

Brand: Harnessflex SKU: 16-GT284

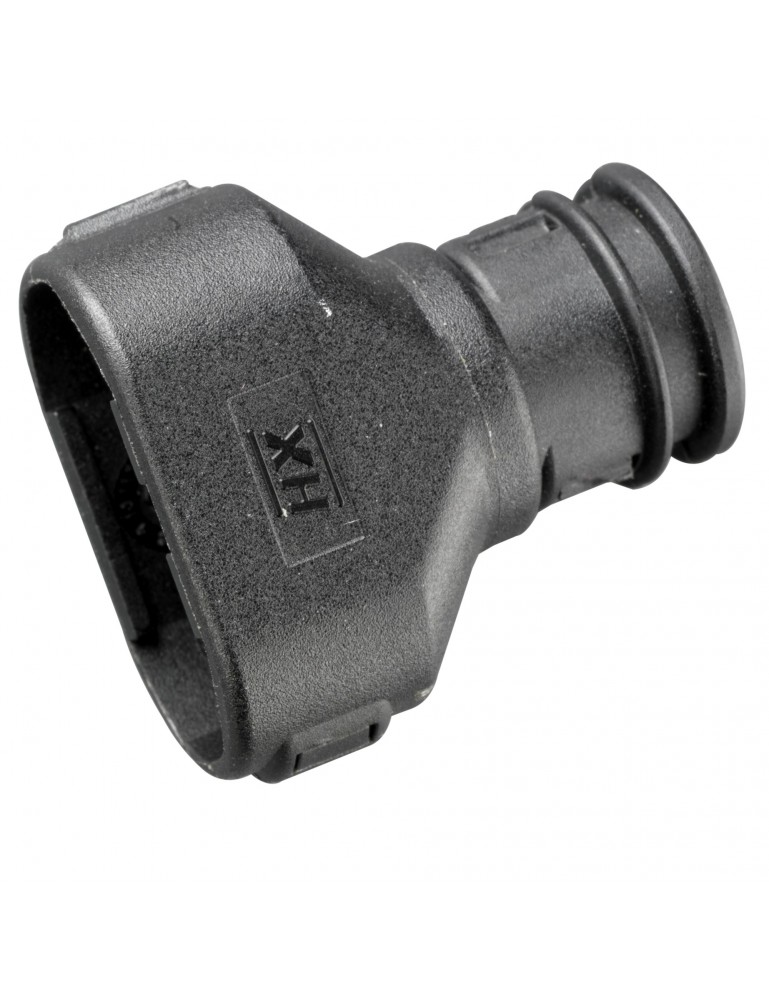

External Hinged Connector Interface

Straight interfaces providing high integrity connections between various Delphi series connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore.

Min Temp: -40ºC
Max Temp: 120ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

External Hinged Connector Interface

Straight interfaces providing high integrity connections between various Delphi series connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore.

Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
16-GT284

Data sheet

Connector
135214559
Minimum Temperature
-40ºC
Maximum Temperature
120ºC
New product
