Harnessflex,TPB32 T Piece, , TPB32

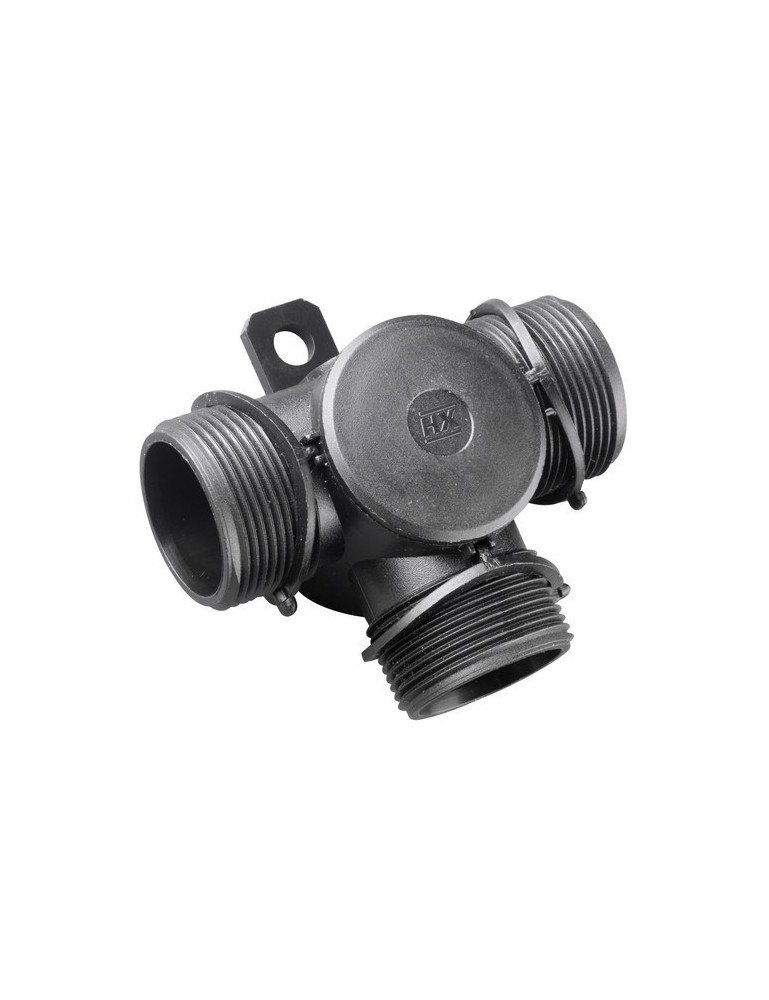

Harnessflex, TPB32 T Piece

External T-piece

Symmetrical, 3 junction compression type fittings providing a variety of conduit size configurations. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

Min Temp: -40ºC
Max Temp: 150ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

External T-piece

Symmetrical, 3 junction compression type fittings providing a variety of conduit size configurations. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

Features
  • IP67 – IP68 (2 bar for 30 minutes) – sealing bush protects against ingress of water and dust.
  • Cap-nut retention ring ensures integrity of assembly under extreme vibration
  • Smooth contoured internal form protects cables from damage during installation.
  • Integral mounting bracket – provides secure external fixing point.
  • Removable IP67 inspection lid
  • Polyamide (Nylon) 66
  • Temperature Range: -40ºC to 150ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • ADR approved (NC conduits ONLY)
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
TPB32

Data sheet

Minimum Temperature
-40ºC
Maximum Temperature
150ºC
