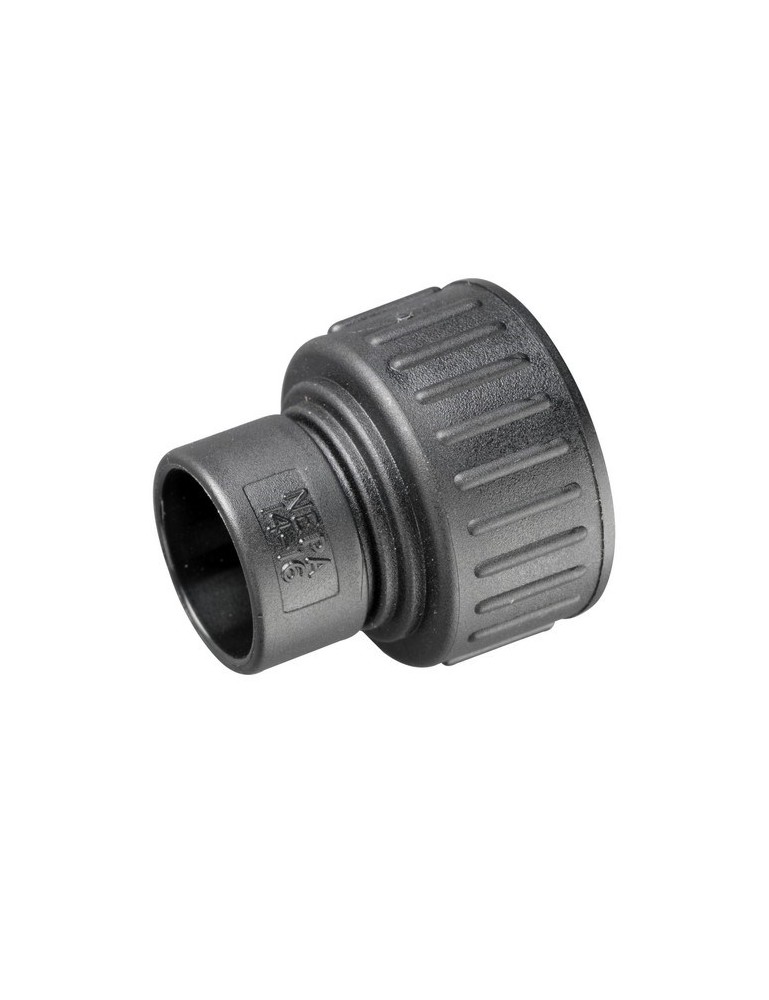

Harnessflex, NEPA14-16 ADAPTOR

Brand: Harnessflex SKU: NEPA14-16

Interfaces for Circular Connectors

Interface provides connection between electrical circular connectors and hinged conduit system. Due to the innovative design, the interface can freely rotate without any harness movement.

Min Temp: -40ºC

Max Temp: 120ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

Interfaces for Circular Connectors

Interface provides connection between electrical circular connectors and hinged conduit system. Due to the innovative design, the interface can freely rotate without any harness movement.

Features

One-piece external design for unrestricted bore and quick assembly with no tools.
High pull-off strength – conduit corrugations sit tightly into joiner junctions.
Conduit size labels – each junction indicates nominal conduit size to aid installation
Polyamide (Nylon) 66
IP40 rated
Temperature Range: -40ºC to 120ºC
Very high UV resistance
Self extinguishing, low smoke toxicity & halogen free

Conformity

CE Mark to the low voltage directive
RoHS Compliant to 2011/65/EU
Conforms with end of life vehicle directive (ELV) EU200/53/EC

Brand Harnessflex

Reference NEPA14-16

Data sheet

Minimum Temperature: -40ºC
Maximum Temperature: 120ºC

Condition New product

Download

Harnessflex Catalogue

4.05M
