Harnessflex,CTPA32-S/OR 32mm CTPA Split Flexible Conduit – 50m, , CTPA32-S/OR

Harnessflex, CTPA32-S/OR 32mm CTPA Split Flexible Conduit – 50m

Brand: Harnessflex SKU: CTPA32-S/OR

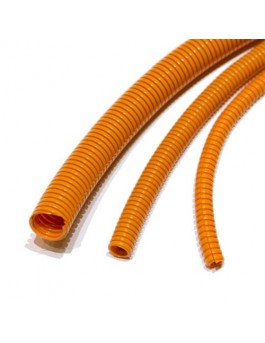

CTPA Lightweight Extra flexible conduit, Modified Polyamide 6

CTPA general purpose, lightweight loom conduit suitable for automotive harness applications. It can withstand extremes of temperatures and resists automotive oils and solvents. It is extremely tough and has a high impact strength and fatigue life. CTPA conduits provide protection against mechanical shock and ingress of water whilst maintaining their form through tight bend radii.

Min Temp: -40ºC
Max Temp: 120ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

CTPA Lightweight Extra flexible conduit, Modified Polyamide 6

CTPA general purpose, lightweight loom conduit suitable for automotive harness applications. It can withstand extremes of temperatures and resists automotive oils and solvents. It is extremely tough and has a high impact strength and fatigue life. CTPA conduits provide protection against mechanical shock and ingress of water whilst maintaining their form through tight bend radii.

Properties
  • High flexibility & fatigue life
  • Very high abrasion, impact and shock resistance
  • Temperature range: -40ºC to 120ºC
  • Temperature range short-term: 150°C
  • UV Resistance – Very High (Black), Medium (Grey, Orange and Red)
  • IP40 – IP67 rated (Depending on fitting)
  • Available colours:
  • Black (BL), Red (RAL3031) & Orange (RAL2003)
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV)EU200/53/EC
  • UL94 HB
Harnessflex
CTPA32-S/OR

Data sheet

Minimum Temperature
-40ºC
Maximum Temperature
120ºC
Short Term Max Temp
150ºC
