Harnessflex,CI201220-DRC50 Interface, Array, CI201220-DRC50

Harnessflex, CI201220-DRC50 Interface

Brand: Harnessflex SKU: CI201220-DRC50

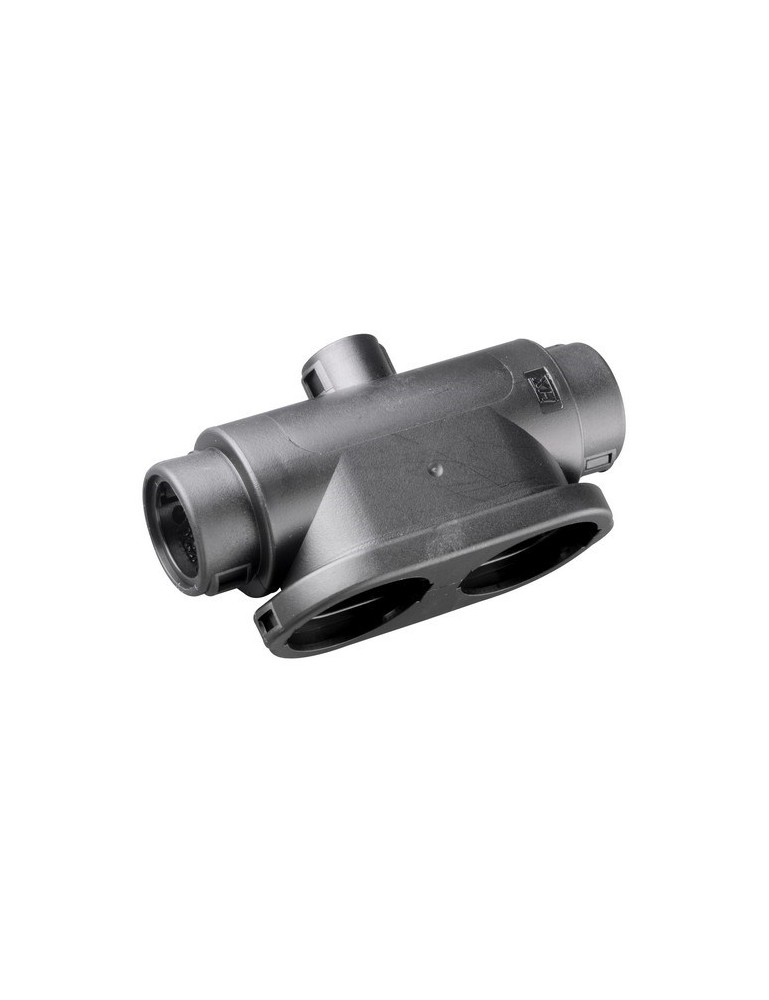

External Hinged Connector Interface

Two identical half shells snap together onto the twin outlets of the Deutsch DRC50 interface giving a 3 Way conduit fi tting. These interfaces are designed to snap together over all types of Harnessfl ex slit and unslit conduit, maintaining maximum conduit bore.

Min Temp: -40ºC
Max Temp: 120ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

External Hinged Connector Interface

Two identical half shells snap together onto the twin outlets of the Deutsch DRC50 interface giving a 3 Way conduit fi tting. These interfaces are designed to snap together over all types of Harnessfl ex slit and unslit conduit, maintaining maximum conduit bore.

Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
CI201220-DRC50

Data sheet

Connector
DRC26-50S0
Minimum Temperature
-40ºC
Maximum Temperature
120ºC
