Harnessflex,CPS421616 Hinged Shroud, , CPS421616

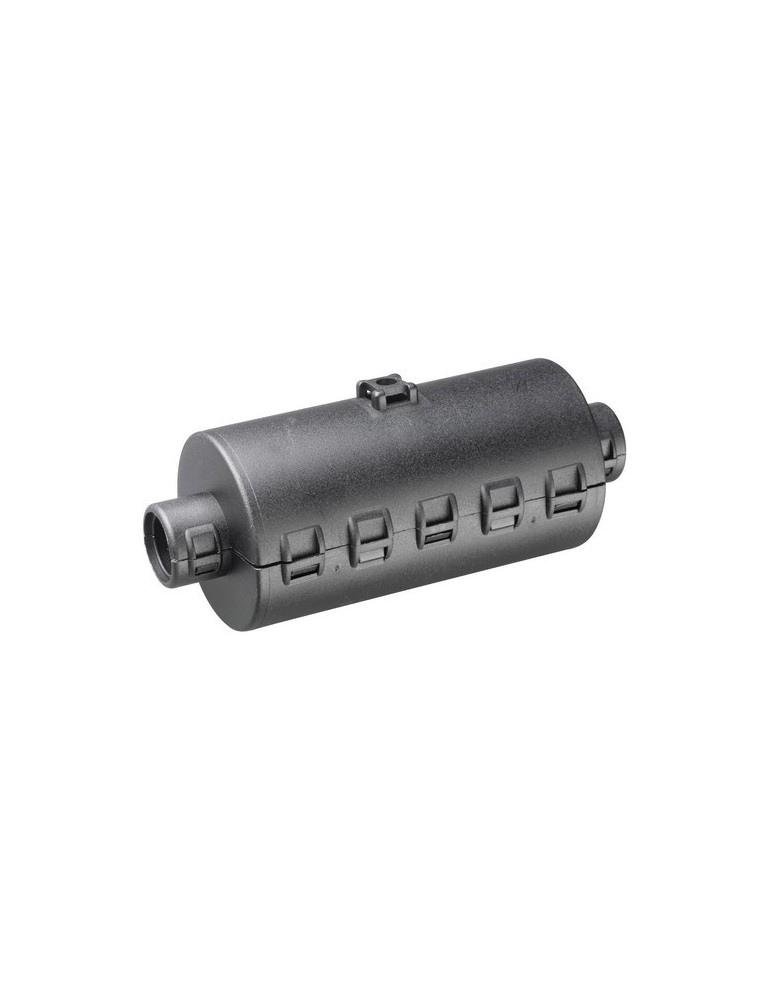

Harnessflex, CPS421616 Hinged Shroud

Brand: Harnessflex SKU: CPS421616
External Hinged Protective shroud

One-piece cover providing protection for in-line connectors, fuse links, circuit breakers and splicing areas. The CPS shrouds can be used as a harness datum, due to the integrated cable tie/fir tree facility. The strong construction allows for the protection of delicate connections, or as an alternative when an interface/backshell isn’t available. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore.

Min Temp: -40ºC
Max Temp: 120ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

External Hinged Protective shroud

One-piece cover providing protection for in-line connectors, fuse links, circuit breakers and splicing areas. The CPS shrouds can be used as a harness datum, due to the integrated cable tie/fir tree facility. The strong construction allows for the protection of delicate connections, or as an alternative when an interface/backshell isn’t available. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore.

Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – Conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – Each junction indicates nominal conduit size to aid installation
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
CPS421616

Data sheet

Minimum Temperature
-40ºC
Maximum Temperature
120ºC
