Harnessflex,JPH1212 High Temp Hinged Joiner, Array, JPH1212

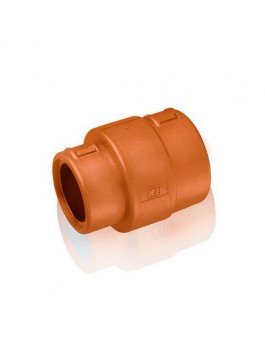

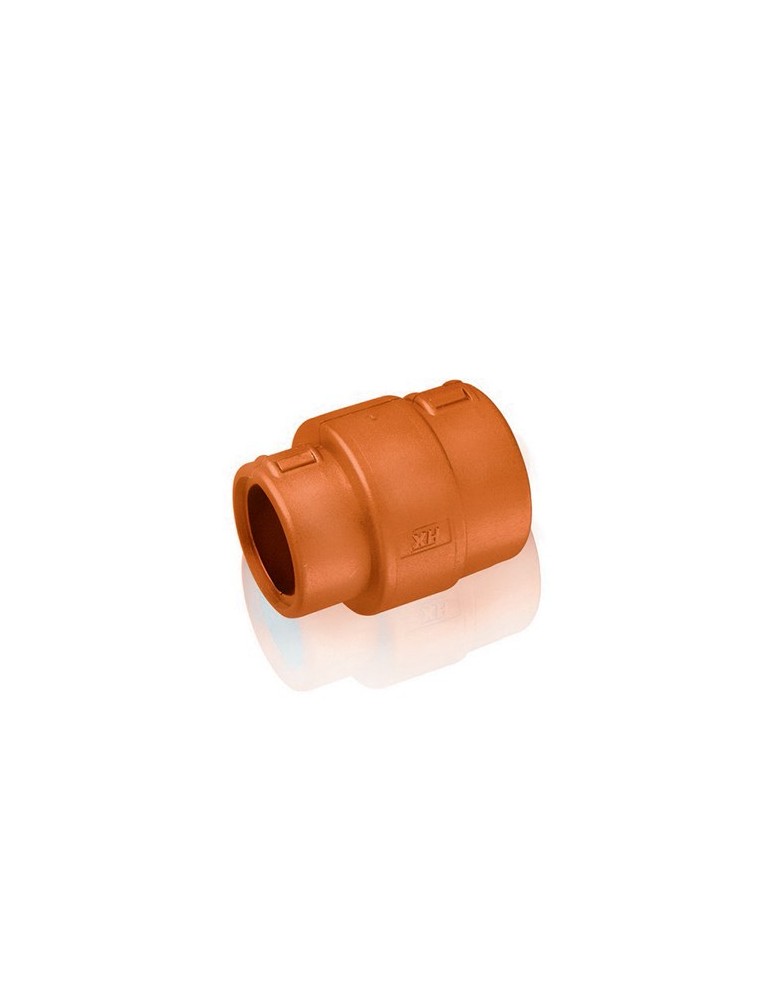

Harnessflex, JPH1212 High Temp Hinged Joiner

Brand: Harnessflex SKU: JPH1212
High Temperature Hinged Joiner

One-piece joiner hinged fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of slit and unslit Harnessflex conduit, maintaining maximum conduit bore. Can be used as an in-line reducer as well as an enlarger.

Min Temp: -40ºC
Max Temp: 160ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

High Temperature Hinged Joiner

One-piece joiner hinged fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of slit and unslit Harnessflex conduit, maintaining maximum conduit bore. Can be used as an in-line reducer as well as an enlarger. Full TempGuard system protection is achieved using these fittings with HTC conduit.

Temperature Range
  • Minimum-40ºC
  • Permanent Max 160ºC
  • Long term max (30,000 hrs) 185ºC
  • Short term max (3,000 hrs) 200ºC
Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation
  • High Temperature Polyamide (Nylon) – Low Smoke & Halogen Free
  • IP40 rated
  • High UV resistance
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
  • UL94 V2 / UL94 RTI 150 (Elec)
Harnessflex
JPH1212

Data sheet

Minimum Temperature
-40ºC
Maximum Temperature
160ºC
Long Term Max Temp
185ºC
Short Term Max Temp
200ºC
Long Term Max Time
30000 hours
Short Term Max Time
3000 hours
