Harnessflex, TPH161216 High Temp T Piece
Brand:
Harnessflex
SKU:
TPH161216

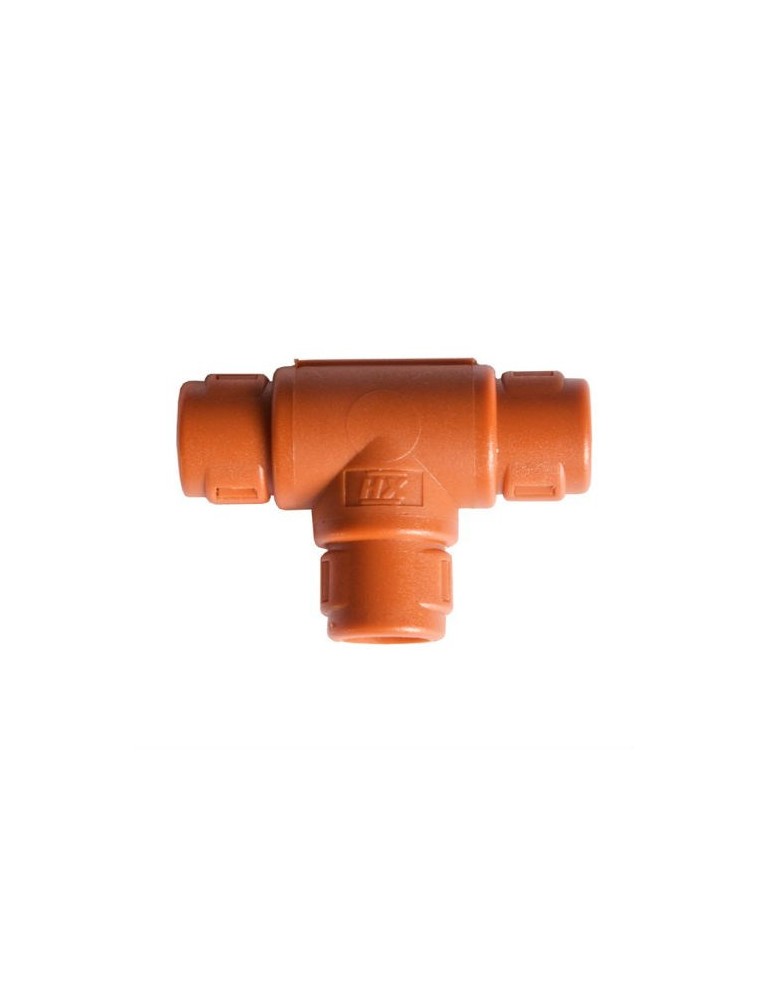

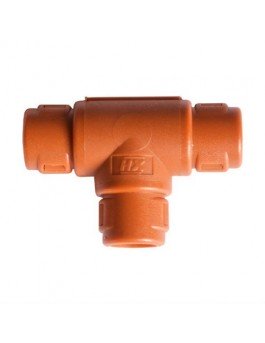

TempGuard Hinged T Piece
One-piece symmetrical 3 junction fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. Full TempGuard system protection is achieved using these fittings with HTC conduit.
Min Temp:
-40ºC
Max Temp:
160ºC
Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
TempGuard Hinged T Piece
One-piece symmetrical 3 junction fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. Full TempGuard system protection is achieved using these fittings with HTC conduit.
Temperature Range
| Minimum | -40ºC |
| Permanent Max | 160ºC |
| Long term max (30,000 hrs) | 185ºC |
| Short term max (3,000 hrs) | 200ºC |
Features
- One-piece external design for unrestricted bore and quick assembly with no tools.
- High pull-off strength – conduit corrugations sit tightly into joiner junctions.
- Conduit size labels – each junction indicates nominal conduit size to aid installation
- Integral retaining clips – retains conduit in position during assembly
- High Temperature Polyamide (Nylon) – Low Smoke & Halogen Free
- IP40 rated
- High UV resistance
- Self extinguishing, low smoke toxicity & halogen free
Conformity
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV)EU200/53/EC
- UL94 V2 / UL94 RTI 150 (Elec)
TPH161216
Data sheet
- Minimum Temperature
- -40ºC
- Maximum Temperature
- 160ºC
- Long Term Max Temp
- 185ºC
- Short Term Max Temp
- 200ºC
- Long Term Max Time
- 30000 hours
- Short Term Max Time
- 3000 hours
