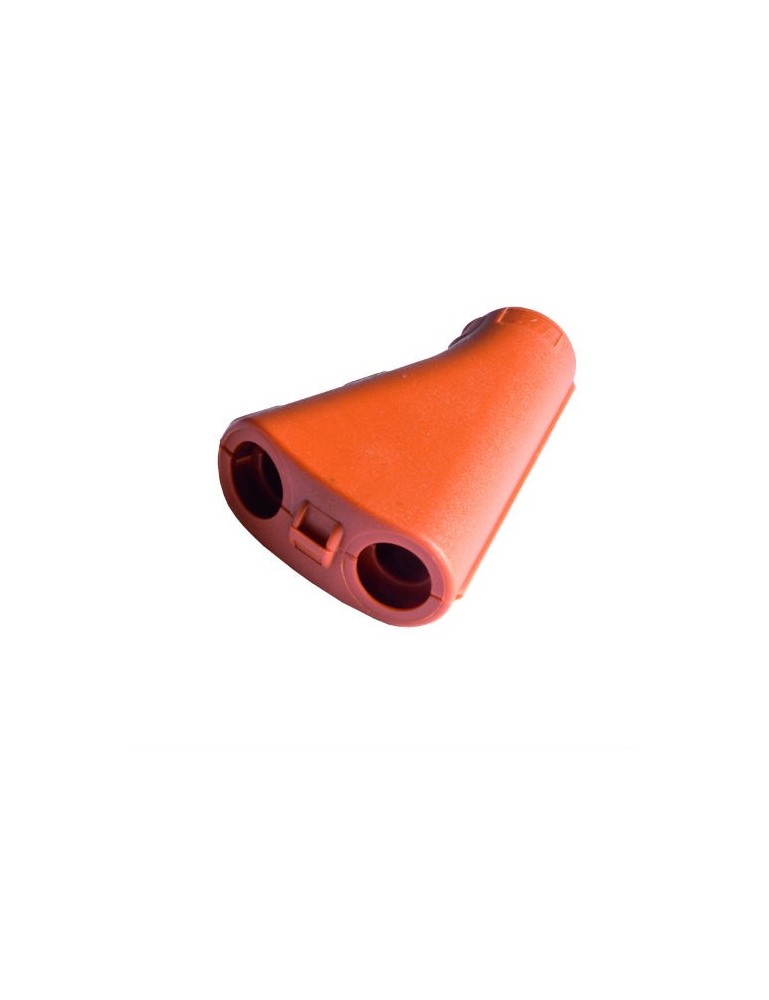

Harnessflex, YPH121208 High Temp Y Piece

Brand: Harnessflex SKU: YPH121208
TempGuard Hinged Y Piece fittings

One-piece asymmetrical 3 junction fittings allow a variety of conduit variations. These fittings are designed to snap together over all types of slit and unslit Harnessflex conduit, maintaining maximum conduit bore. Can be used as an in-line reducer as well as an enlarger. Full TempGuard system protection is achieved using these fittings with HTC conduit.

Min Temp: -40ºC
Max Temp: 160ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

TempGuard Hinged Y Piece fittings

One-piece asymmetrical 3 junction fittings allow a variety of conduit variations. These fittings are designed to snap together over all types of slit and unslit Harnessflex conduit, maintaining maximum conduit bore. Can be used as an in-line reducer as well as an enlarger. Full TempGuard system protection is achieved using these fittings with HTC conduit.

Temperature Range
Minimum-40ºC
Permanent Max 160ºC
Long term max (30,000 hrs) 185ºC
Short term max (3,000 hrs) 200ºC
Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation
  • High Temperature Polyamide (Nylon) – Low Smoke & Halogen Free
  • IP40 rated
  • High UV resistance
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
  • UL94 V2 / UL94 RTI 150 (Elec)
Harnessflex
YPH121208

Data sheet

Minimum Temperature
-40ºC
Maximum Temperature
160ºC
Long Term Max Temp
185ºC
Short Term Max Temp
200ºC
Long Term Max Time
30000 hours
Short Term Max Time
3000 hours
