Harnessflex,CI16-LK20 Interface, , CI16-LK20

Harnessflex, CI16-LK20 Interface

Brand: Harnessflex SKU: CI16-LK20

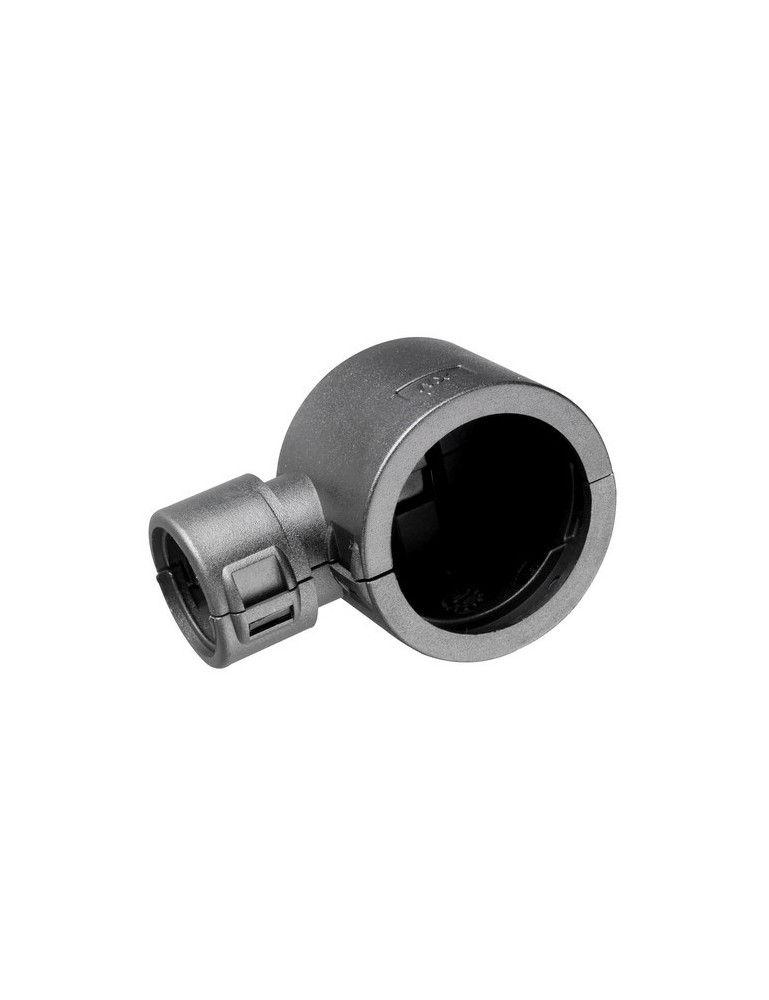

Hinged Connector Interface

Clip-on elbow interface for Kostal in-line connector. Providing high integrity connections to all types of slit and un-slit Harnessflex conduit systems to offer the maximum flexibility and space utilization for harness design.

Min Temp: -40ºC
Max Temp: 150ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

Hinged Connector Interface

Clip-on elbow interface for Kostal in-line connector. Providing high integrity connections to all types of slit and un-slit Harnessflex conduit systems to offer the maximum flexibility and space utilization for harness design.

Features
  • IP67 – IP68 (2 bar for 30 minutes) SRN sealing bush protects against ingress of water and dust.
  • Polyamide (Nylon) 66
  • Temperature Range: -40ºC to 150ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • ADR approved (NC conduits ONLY)
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
CI16-LK20

Data sheet

Connector
9430010
Minimum Temperature
-40ºC
Maximum Temperature
150ºC
New product
