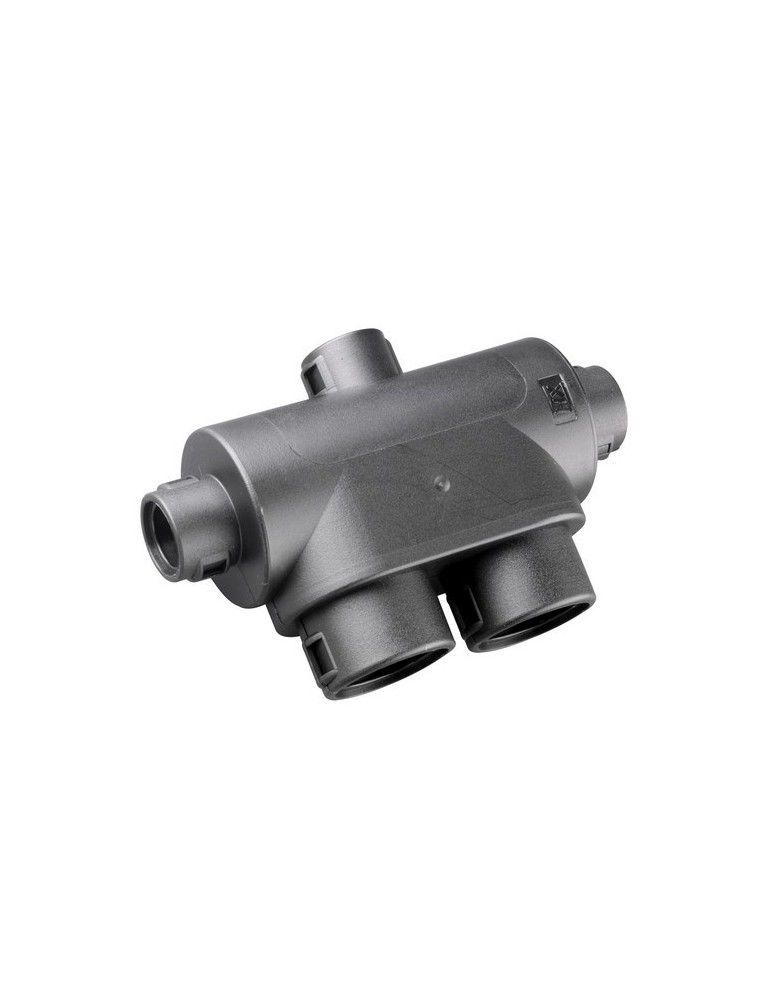

Harnessflex, MPS251225-2020 Manifold

Two-piece 5 way fitting

Two identical half shells snap together to give a 5 Way conduit fitting. Designed to fit all Harnessflex conduit. Additional configurations possible (dependent on volume).

Features

• High pull-off strength – Conduit corrugations sit tightly into joiner junctions.
• Conduit size labels – Each junction indicates nominal conduit size to aid installation
• Multi outlet options – Connect multiple pieces of conduit to one fitting.
• Certain outlets can be blanked using BPST08, BCH12 & BCH20
• Polyamide (Nylon) 66
• IP40 rated
• Temperature Range: -40ºC to 120ºC
• Very high UV resistance
• Self extinguishing, low smoke toxicity & halogen free

Conformity

• CE Mark to the low voltage directive
• RoHS Compliant to 2011/65/EU
• Conforms with end of life vehicle directive (ELV) EU200/53/EC
