Harnessflex, CI28-90-MX93286 MOLEX Interface

Brand: Harnessflex SKU: CI28-90-MX93286

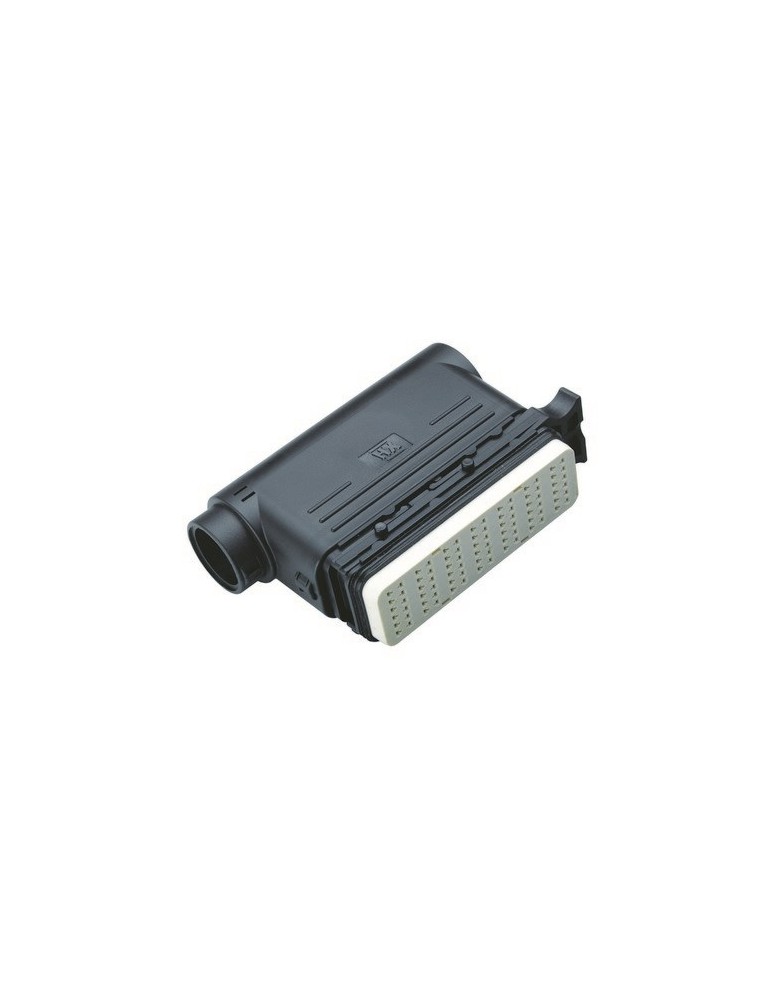

HX 93286 Series external split connector interface

90° elbow interfaces providing high integrity connections between various Molex series connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

Min Temp: -40ºC
Max Temp: 120ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

HX 93286 Series external split connector interface

90° elbow interfaces providing high integrity connections between various Molex series connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

Features
  • Split external design for unrestricted bore and quick assembly
  • Multiple configuration options – Provides the right conduit and outlet position option.
  • Provides protection and security for connector and cable outlet options without the need for short conduit joints.
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
CI28-90-MX93286

Data sheet

Minimum Temperature
-40ºC
Maximum Temperature
120ºC
