Harnessflex,NC06 6mm NC Flexible Conduit – 100m, , NC06

Harnessflex, NC06 6mm NC Flexible Conduit – 100m

Brand: Harnessflex SKU: NC06
NC General purpose conduit, Polyamide 6

NC Standard weight conduit is extensively used in harnesses on HGV, off road vehicles and marine applications where a superior protection against impact and mechanical shock is preferred. The conduit is used for both chassis and engine applications and can be used in a wide range of temperatures. Polyamide 6 is highly resistant to all hydrocarbon based oils and fluids and many types of solvents.

Min Temp: -40ºC
Max Temp: 120ºC

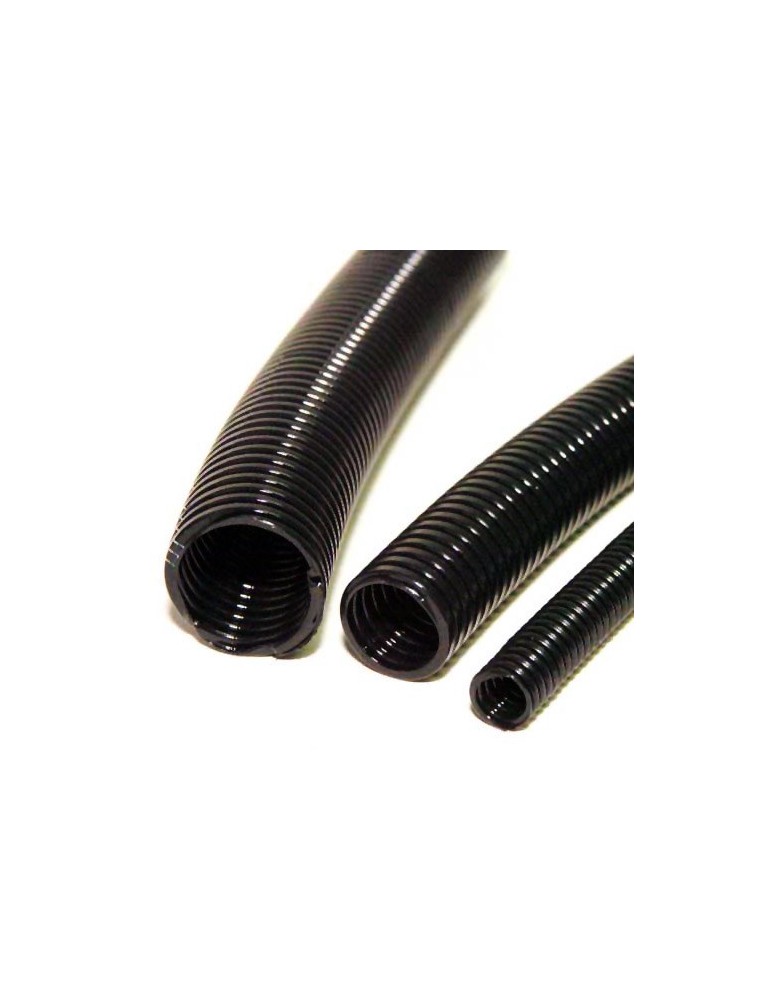

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

NC General purpose conduit, Polyamide 6

NC Standard weight conduit is extensively used in harnesses on HGV, off road vehicles and marine applications where a superior protection against impact and mechanical shock is preferred. The conduit is used for both chassis and engine applications and can be used in a wide range of temperatures.

Polyamide 6 is highly resistant to all hydrocarbon based oils and fluids and many types of solvents.

  • High flexibility & fatigue life
  • Very high abrasion, impact and shock resistance
  • Temperature range: -40ºC to 120ºC
    Temperature range short-term: 170°C
  • UV Resistance – Very High (Black), Medium (Grey, Orange and Red)
  • IP40 – IP68 (2 bar 30 mins) (Depending on fittings)
  • Available colours:
    Black (BL), Grey (RAL7031), Red (RAL3031) & Orange (RAL2003)
  • Self extinguishing, low smoke toxicity & halogen free
  • Available in slit variants
Harnessflex
NC06

Data sheet

Minimum Temperature
-40ºC
Maximum Temperature
120ºC
Short Term Max Temp
170ºC
