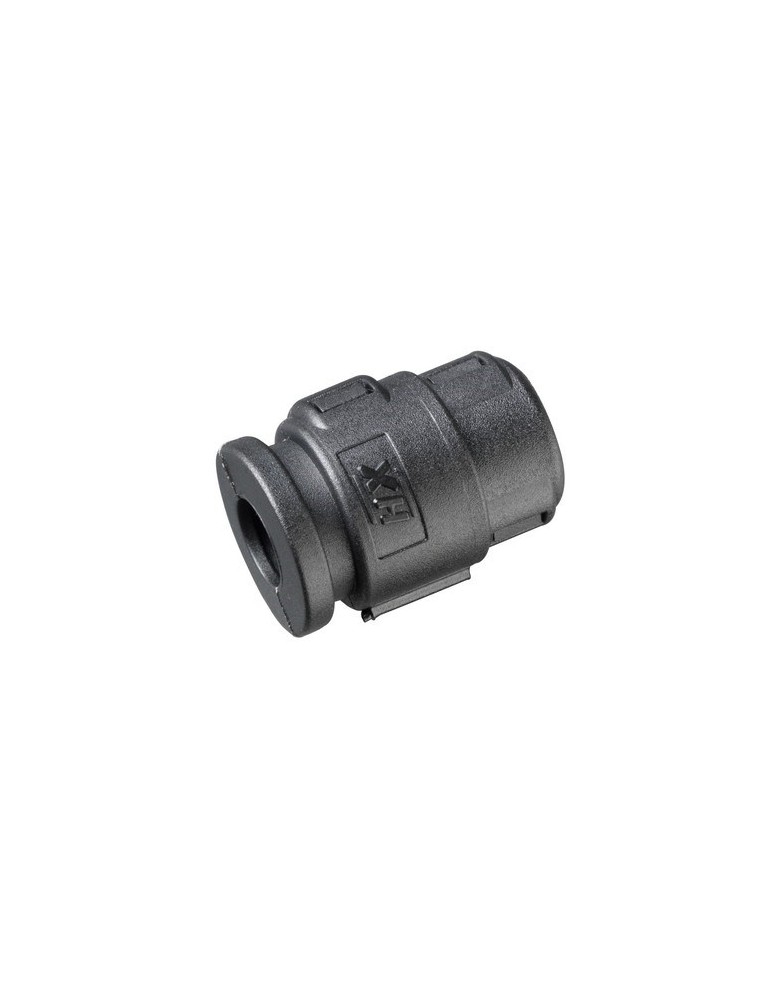

Harnessflex,CI10-AS2 Interface, Array, CI10-AS2

Harnessflex, CI10-AS2 Interface

Brand: Harnessflex SKU: CI10-AS2
High temperature external hinged connector interfaces for AMP Superseal

Single junction 90° elbow interfaces providing high integrity, high temperature connection protection between AS – AMP Superseal connectors and Harnessflex conduit systems.

Min Temp: -40ºC
Max Temp: 120ºC

Please Note All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

External Hinged Connector Interface

Single junction straight interfaces providing high integrity connections between AMP Superseal or Junior timer connectors and Harnessflex conduit systems. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore.

Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Harnessflex
CI10-AS2

Data sheet

Connector
282080-1
Temp Guard
CIH10-AS2ºC
Minimum Temperature
-40ºC
Maximum Temperature
120ºC
