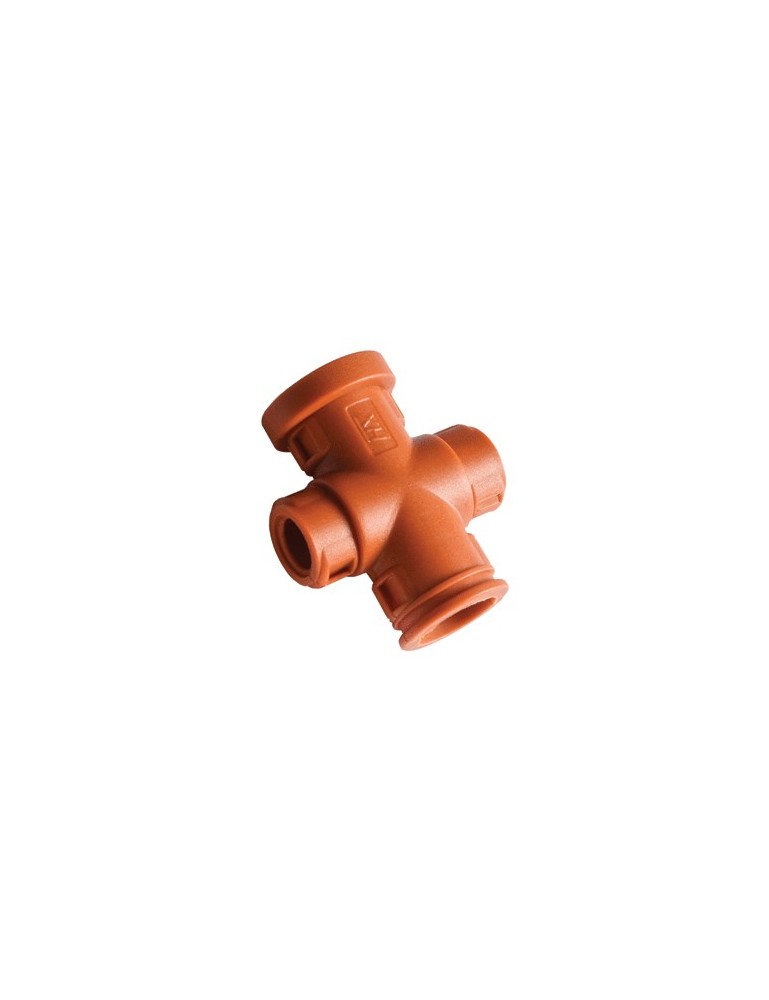

Harnessflex, XPH1208 Interface

TempGuard X configuration hinged fittings

These fittings are designed to snap together over all types of slit and unslit Harnessflex conduit, maintaining maximum conduit bore. Full TempGuard system protection is achieved using these fittings with HTC conduit.

Temperature Range

Minimum -40ºC
Permanent Max 160ºC
Long term max (30,000 hrs) 185ºC
Short term max (3,000 hrs) 200ºC

Features

• One-piece external design for unrestricted bore and quick assembly with no tools.
• High pull-off strength – conduit corrugations sit tightly into joiner junctions.
• Conduit size labels – each junction indicates nominal conduit size to aid installation
• High Temperature Polyamide (Nylon) – Low Smoke & Halogen Free
• IP40 rated
• High UV resistance

Conformity

• CE Mark to the low voltage directive
• RoHS Compliant to 2011/65/EU
• Conforms with end of life vehicle directive (ELV) EU200/53/EC
• UL94 V2 / UL94 RTI 150 (Elec)
